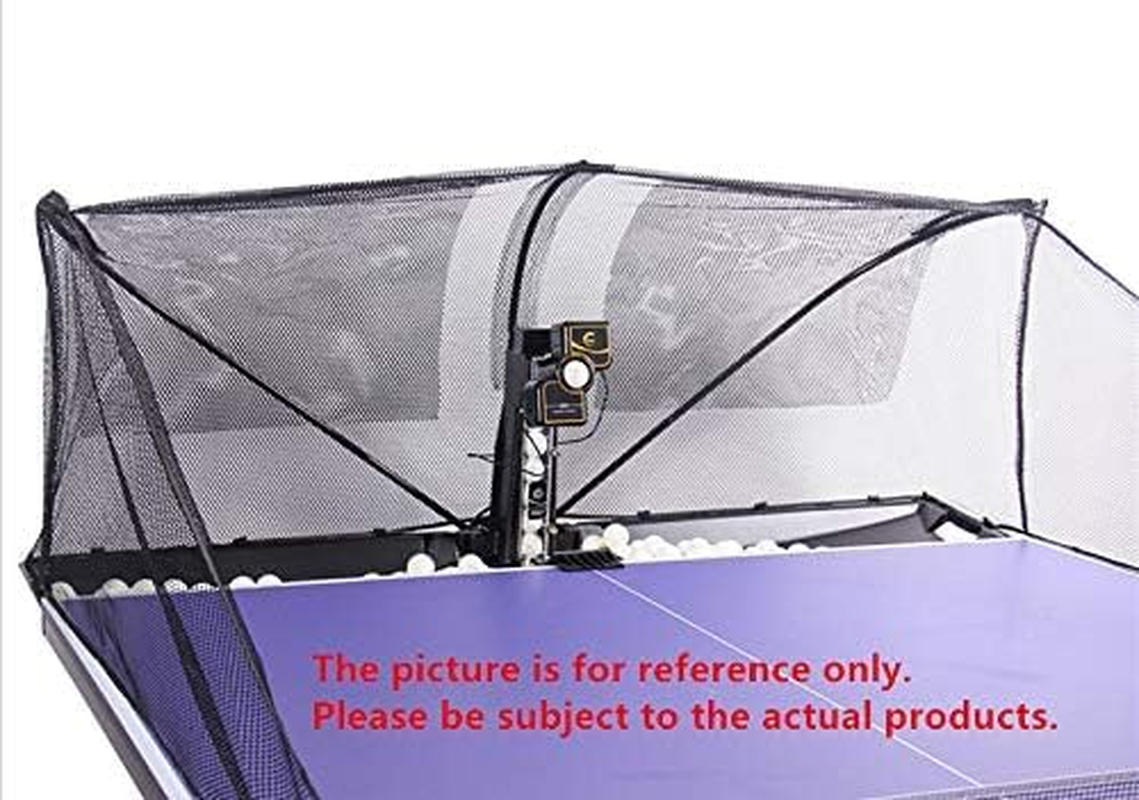

Table Tennis Robot with Net Ping Pong Ball Machine S201 Automatic Machine for Training with 40Mm+ Table Tennis Balls

• Table tennis robot model: Suz S201

• Rated voltage: 100V-240V

• Rated power: 50W

• Ball frequency: serving 35-80 balls per minute

• Ball speed: 4-40 m/s

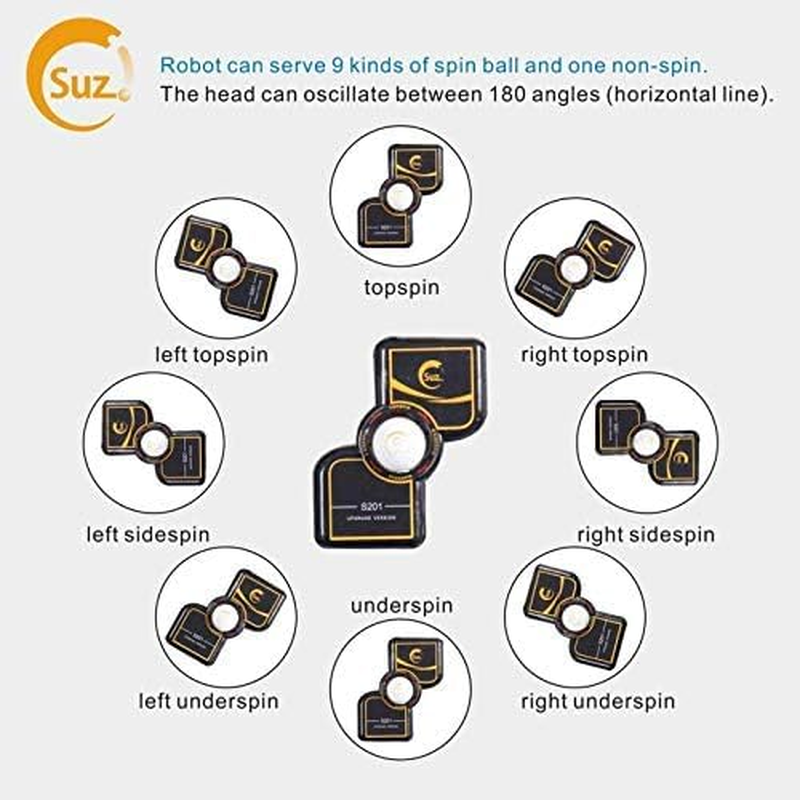

• Spin pattern: no spin, topspin, backspin, and side spin

• Ball trajectory: fixed or random

Special attention

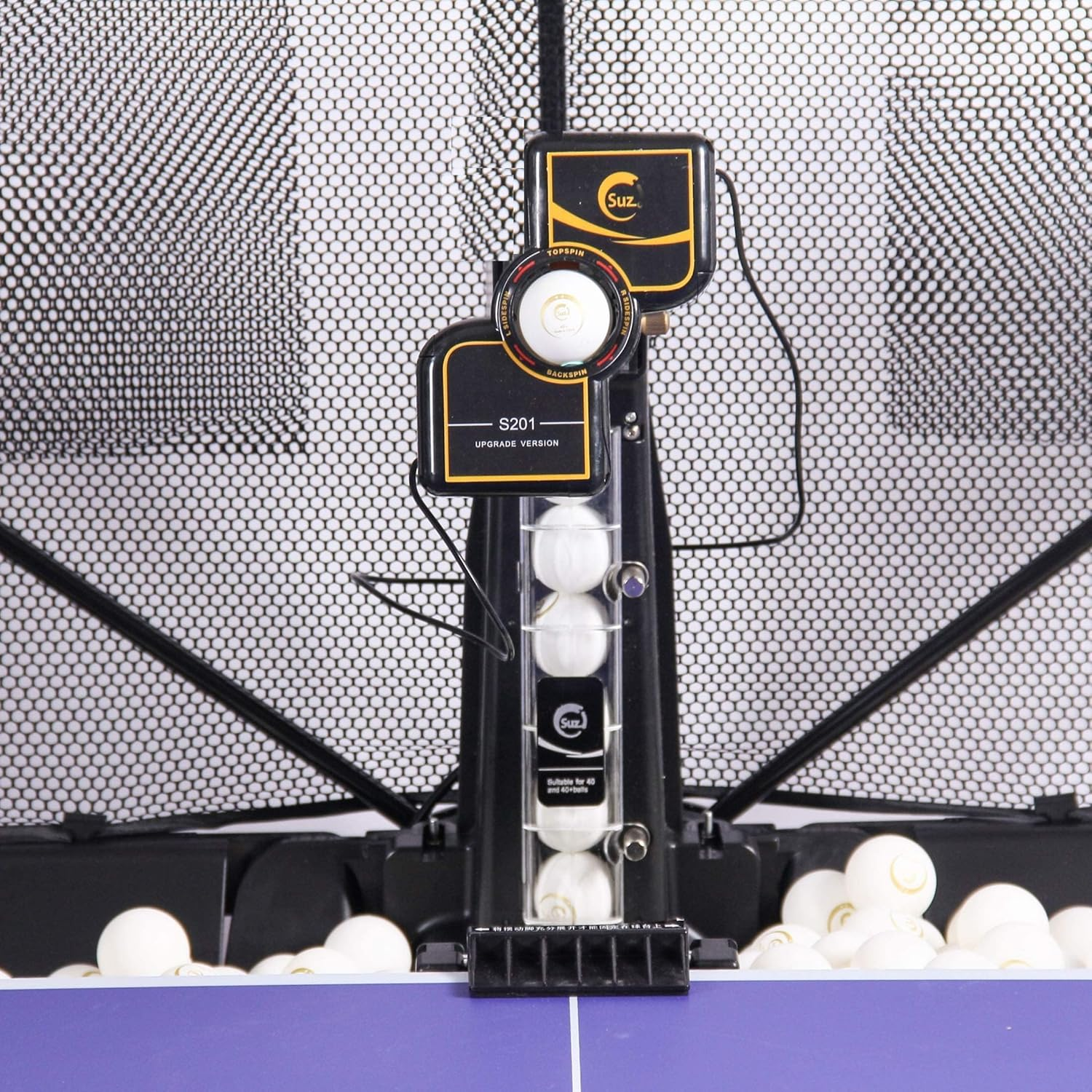

• Suz S201 is designed to work properly when at least 20 balls are available below the feeding tube. If the machine does not serve properly, make sure that there are enough balls around the feeding tube and the ball frequency on the control box is at least 1. Make sure enough balls around the feeding tube,Tighten the net a little, let the tilt rise a little, so the balls will came to the feeding tude.

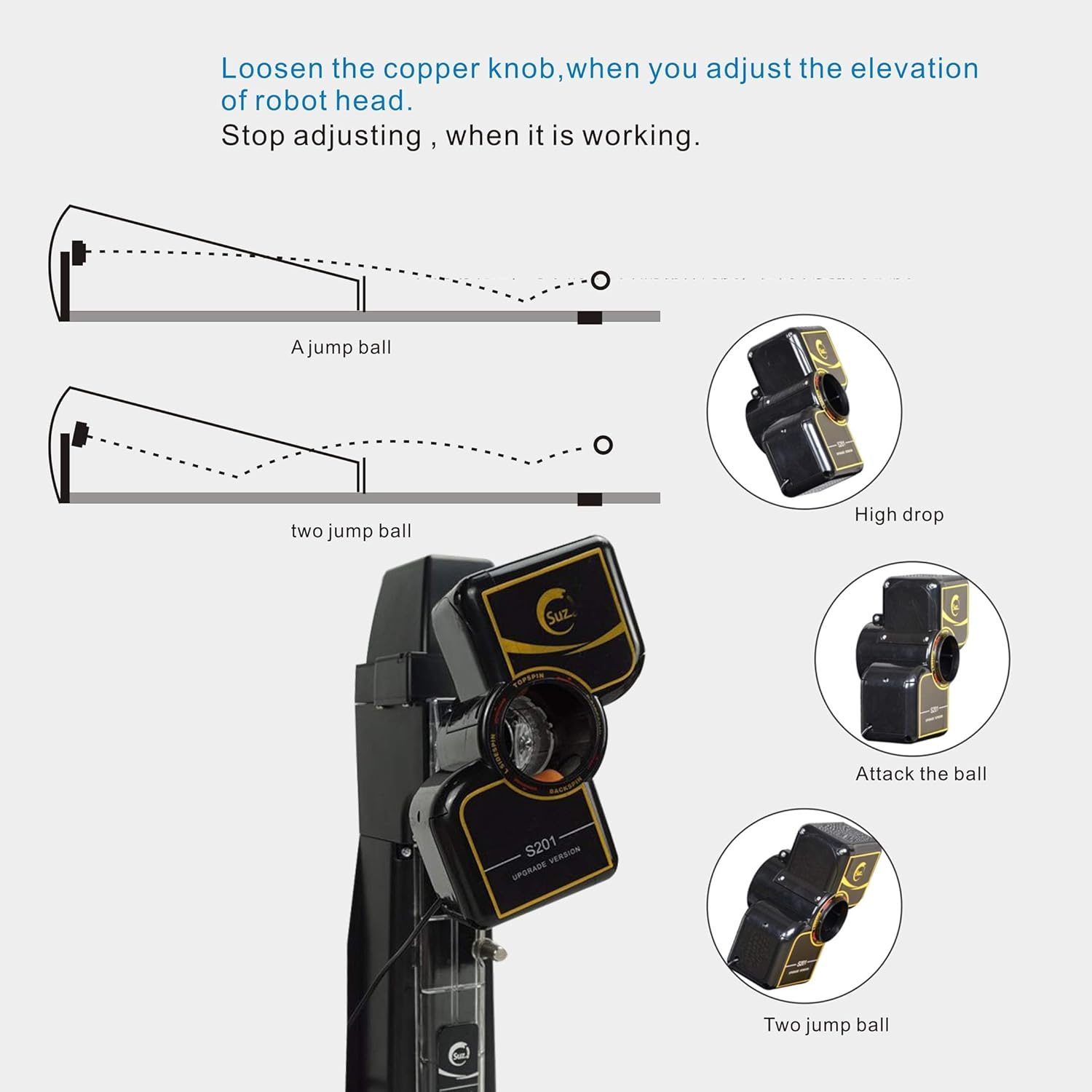

• Adjust robot head up and down, you can play direct serve or indirect serve. how to adjust robot head up and down can send us message for video. If you would like to play direct serve (i.e., the served ball bounces one time on the table before you hit the ball), set topspin to 6 and backspin to 2 or 3 on the control box. If you would like to play indirect serve (i.e., the served ball bounces two times on the table before you hit the ball), set topspin to 4 and backspin to 3 on the control box.

• If Oscillation not working,Please turn Oscillation “+” to 9 ,put your Hand left and right help the robot head turn left and right.Give the machine a little power to help his head wiggle.

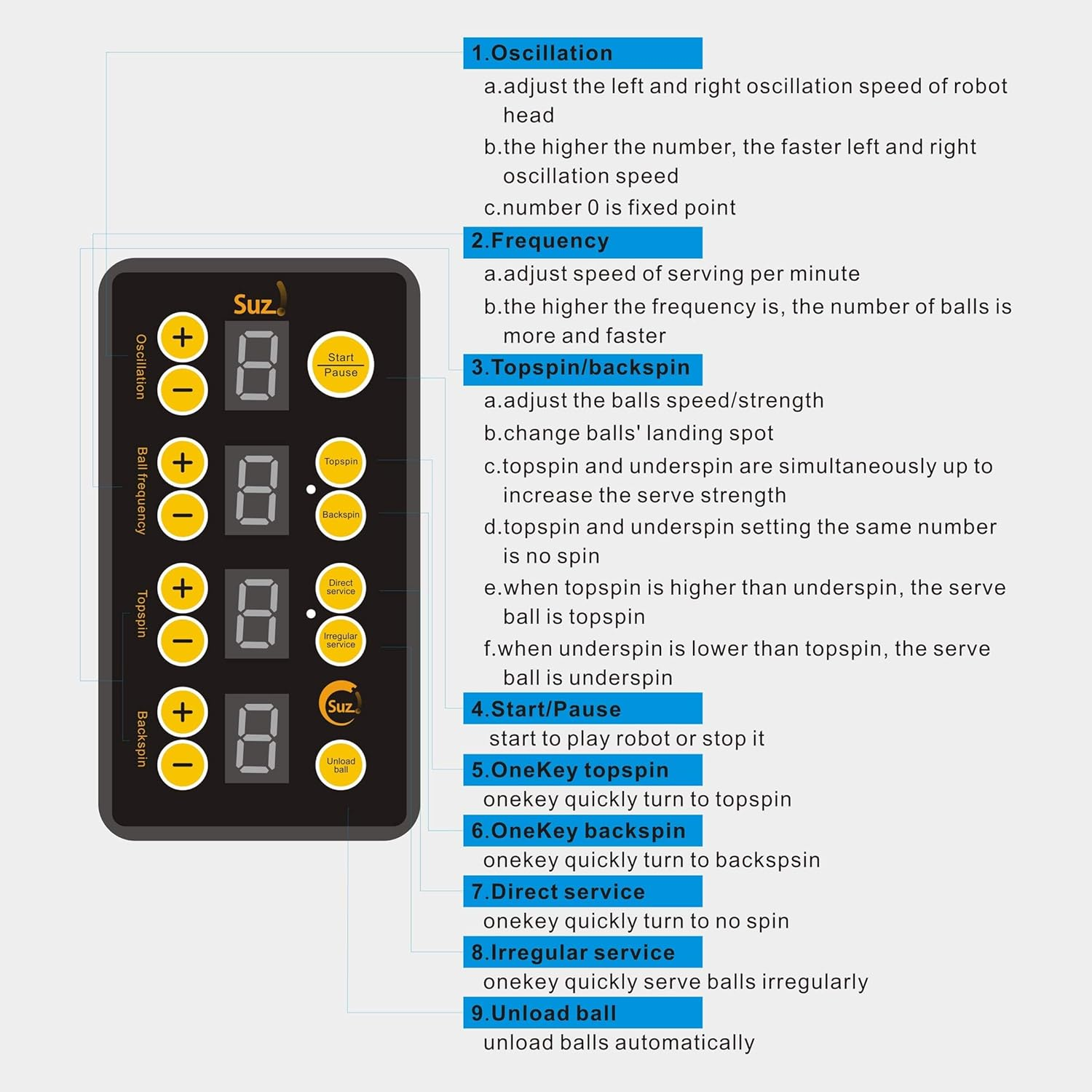

•Topspin or Backspin setting. If you want to play topspin ball. Please select topspin on 2 and backspin on 1. Or 3-1, 4-1 ,5-2, etc…. (When you play topspin ball, the stregth of topspin should be bigger than backspin). If you want to play backspin ball, the stregth of backspin should be bigger than topspin. Such as, topspin 2 and backspin 3, or 1 and 4.

•Minimum frequency is too fast. you can buy a small power ( picture D in manual page 2 ) in your local, now we are 12V-3A, you can buy 9V, so it will let the frequency lowest .you can choose 9V , 5.5*2.1 mm.

• Adult supervision is required for children to use Suz S201. A child might be hit by balls and get hurt if the ball frequency is accidentally set too high.

• Read the manual for instructions on how to install the robot.How to install power cord, put in power cord behind the control box.(not the back of the machine,put in power cord behind the control box )

• If you need any help, please email the manufacturer. The manufacturer’s email address can be found in the manual. The manufacturer will provide replacement parts for any damage caused by normal wear and tear within one year from the purchase of Suz table tennis robots.

• Can only be placed on table tennis tables less than 2.5 inches thick. if table tennis table is more than 2.5 inches thick is not suitable for our robot. the bracket to hold the controller only fit less than 2.5 inches thick table.
